Detailed Product Description
| Image Sensor: |
1/2" IT CCD |
Effective Picture Elements: |
752(H) X 582 (V) |
| Horizontal Resolution: |
560TVL |
External Sync System: |
HD / VD (2 ~ 5 Vp-p) |
| Dimensions (W X H X D): |
29 X 29 X 32 Mm |
Weight: |
70 G |

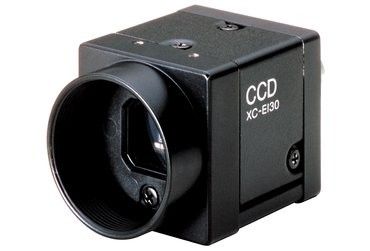

SONY XC-EI50CE Surveillance Camera System Small lightweight Monochrome Analog Module
Description:
The XC-ES50/CE and XC-ES30/CE are ultra compact, lightweight one-piece black and white camera modules incorporating the latest 1/2 and 1/3 type Interline (IT) CCDs which produce new levels of picture detail. With miniature dimensions, these units can easily be installed in places where installation was previously difficult for larger cameras. All four models have identical dimensions and controls, making it easy to interchange between modules and also with the XC-EI Series.
A full range of settings is available for differing subject and lighting conditions, with all camera control switches accessible from the outside of the camera. A single standard 12-pin connector provides remote control of input/output signals as well as power.
Excellent shock and vibration characteristics, together with an outstanding MTBF, make these cameras ideal for demanding machine vision and imaging applications.
The recommended camera adapter for these units is the compact and lightweight DC-700/CE.
Advantage:
Small Size. Big Performance.
Feature:
* Open-up new possibilities
Process control and inspection applications that could not be done because of size and weight limitations now can. These cameras can provide an economical alternative for most remote camera-head applications. Mounted on fast moving machine parts these cameras no longer restrict machine performance and offer a competitive edge to OEMs.
* Versatile
The XC-ES and XC-EI Series offer high sensitivity using 1/2" and 1/3" IT CCD with HAD technology, flexible trigger shutter function (including simple trigger with internally generated VD) and many other features. When used with an IR LED illuminator, the XC-EI50/CE and XC-EI30/CE can capture images in very low light environments and/or easily detect features that are more distinguishable in IR illumination.
* Easy to install and operate
The compact size makes these cameras very easy to install in tight places. All camera control switches are accessible from the outside of the camera. Industry standard C-mount, one cable solution (EIAJ standard) for signal and power, easy interchange between modules, low power consumption that generates less heat and full compliance with EU CE/EMC regulations make these cameras very easy to apply.
* Reliable
The XC-ES and XC-EI Series offer excellent vibration and shock characteristics ( 10G (20 ~ 200 Hz) and 70G ) and a very impressive MTBF of 125,000 hours.
Specification:
| Image device |
1/2" IT CCD |
| Effective picture elements |
752(H) x 582 (V) |
| Signal system |
CCIR (standard) |
| Horizontal frequency |
15.652 kHz |
| Vertical frequency |
50 Hz |
| Cell size |
8.6 x 8.3 µm |
| Lens mount |
C mount |
| Flange back |
17.526 mm |
| Sync system |
Internal / External (auto) |
| External Sync system |
HD / VD (2 ~ 5 Vp-p) |
| External Sync frequency |
±1% |
| Jitter |
less than ± 50 nsec |
| Scanning system |
2:1 Interlaced |
| Video output |
1.0 Vp-p, negative, 75 Ω unbalanced |
| Horizontal resolution |
560 TV lines |
| Minimum illumination* |
0.3 lx |
| S/N ratio |
60 dB |
| Gain |
AGC (0-18 dB) / Manual (0-18 dB) Selectable |
| Gamma |
ON / OFF |
| Normal shutter |
1 / 120 ~ 1 / 10,000 s |
| External trigger shutter** |
1 / 4 ~ 1 / 8,000 s |
| Power requirements |
DC12 V (+9 ~ 16 V) |
| Power consumption |
1.6 W |
| Dimensions |
29 (W) x 29 (H) x 32 (D) mm (1 3 /16 x 1 3 /16 x 1 5 /16 inches) |
| Mass |
70 g |
| Operation temperature / Humidity |
-10 ~ +50 °C / 20 ~ 80% |
| Storage temperature / Humidity |
-20 ~ +60 °C / 20 ~ 95% |
| Vibration |
10 G (20 ~ 200 Hz) |
| Shock resistance |
70 G |
| MTBF |
125 000 hours |
| Regulations |
UL1492, FCC Class A Digital Device, CE (EN50081-2 + EN50082-2), AS4251.1 + AS4252.2 |
