| Image Sensor: |
2/3-type Progressive Scan IT CCD |
Color Filter: |
Elementary Color Mosaic |
| Frame Rate: |
32 Fps @ 1,920 (H) X 1,080 (V), 2ch |
Minimum Illumination (50%): |
6 Lx (Iris: F1.4, Gain: +18 DB, Shutter: 1/32 S) |
| Dimensions (W X H X D): |
50 X 50 X 57.5 Mm |
Weight: |
200 G |

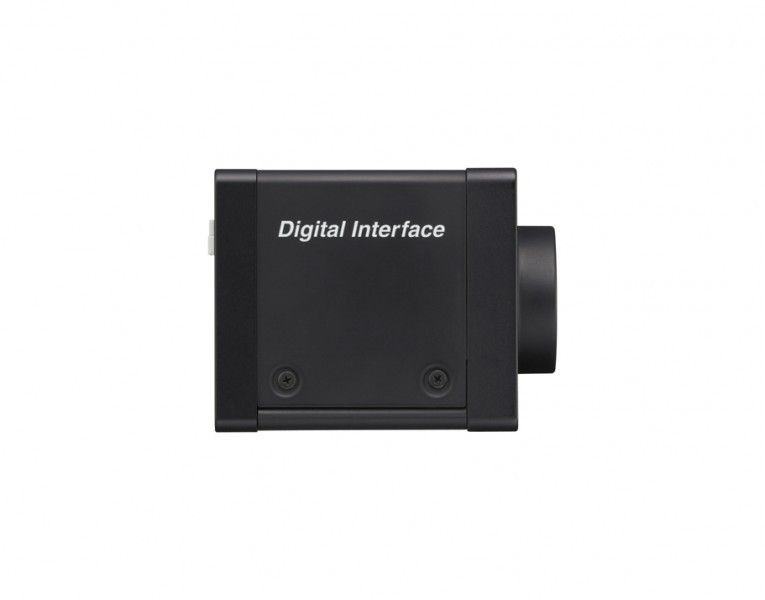

16 channels Industrial CCD Camera Systems Sony XCG-H280CR RAW Color GigE
Description:
The XCG-H280CR incorporates a 2/3-type EXview HAD CCD II™ colour sensor which provides great sensitivity with a full-HD high frame rate image transfer capability with 8-, 10-, or 12- bit video data output. In addition to inheriting some of the unique features of Sony's XCD Series, such as Bulk Trigger and Sequential Trigger modes, the XCG-H280CR supports useful features for ITS (Intelligent Transportation System) applications such as Chunk Data and Auto Exposure.
The XCG-H280CR incorporates the GigE Vision® interface standard based on Gigabit Ethernet technology. In response to growing demand for large-scale systems, this interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and the availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system.
By utilizing the features and benefits of the GigE Vision, the XCG-H280CR camera is ideally suited to the demanding requirements of ITS and machine-vision applications.
Applications
Intelligent Traffic, Machine Vision, and Industrial applications
Feature:
* Gige Vision Interface
The adoption of GigE Vision® Version 1.2 adds to the outstanding value and performance of XCG-H280CR camera. Being GenICam-compatible, the XCG-H280CR is easy to integrate, thanks to a host of commercially available image-processing libraries.
* High Frame rate Image transfer
The XCG-H280CR features a high readout rate of uncompressed images for smooth and clear results. This also enables this cameras to capture fast-moving objects without sacrificing image quality.
* Image Buffer
The XCG-H280CR is equipped with an image buffer which serves as temporary storage for captured images for later transmission or retransmission. This function allows users to maximize bandwidth in multiple-camera operations or reconfirm specific images as required.
* Bulk trigger Mode & Sequential Trigger Mode
In addition to conventional Trigger modes, XCG-H280CR camera features advanced Bulk Trigger and Sequential Trigger modes. Each camera supports 16 memory channels that can store up to 16 different camera setups (exposure, gain, LUT). Bulk Trigger mode allows these cameras to capture up to 16 images in rapid succession using a single software or hardware trigger. Sequential Trigger mode allows each camera to capture a single image using successive setups stored in the memory channels with each software or hardware trigger.
* Chunk Data
SONY XCG-H280CR camera features metadata readout over Ethernet. The metadata includes Trigger Counter, Offset X, Y, Exposure Time, and GPI Status which are useful in ITS applications.
* Auto Exposure
The XCG-H280CR feature Auto Exposure which enables these cameras to capture high-quality images under various lighting conditions.
* Low Power Consumption and Compact Design
SONY XCG-H280CR cameras feature low power consumption and boast a compact 2 x 2 x 2 3/8 in (50 x 50 x 57.5 mm) design. These cameras also have the ability to operate at temperatures of up to 122°F / 50°C.
Specification:
| Camera |
| Image Sensor |
2/3-type progressive scan IT CCD |
| Image Sensor (Number of Effective Pixels, H x V) |
1,940 x 1,460 |
| Cell Size (H x V) |
4.54 μm x 4.54 μm |
| Output Pixels (H x V) |
1,920 x 1,080 |
| Output Pixels (H x V, Full Resolution) |
1,920 x 1,440 |
| Color Filter |
Elementary color mosaic |
| Frame Rate |
32 fps @ 1,920 (H) x 1,080 (V), 2ch |
| Minimum Illumination (50%) |
6 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/32 s) |
| Sensitivity |
F8 (2000 lx, Gain: 0 dB) |
| S/N Ratio |
1 step (Lens close, Gain: 0 dB, 8 bits) |
| Gain |
Auto, Manual : 0 dB to +18 dB |
| Shutter Speed |
2 s to 1/100,000 s, Auto |
| White Balance |
One push WB, Manual |
| Camera Features |
| Readout Modes |
Normal, Partial scan |
| Readout Features |
Gamma (variable), Built-in test pattern |
| Synchronization |
Hardware trigger, Software trigger |
| Trigger Modes |
Edge detection, Pulse width detection, Bulk trigger, Sequential trigger |
| User Set/Memory Channel |
16 channels |
| User Memory |
64 bytes x 16 channels |
| Image Buffer |
16 frames |
| Other Features |
Internal temperature sensor |
| Interface |
| Video Data Output |
8, 10, 12-bit RAW, digital |
| Digital Interface |
Gigabit Ethernet (1000BASE-T) |
| Camera Specification |
GigE Vision® Version 1.2 |
| Digital Input/Output |
TTL IN (x2), TTL OUT (x2) |
| General |
| Lens Mount |
C mount |
| Power Requirements |
DC +12 V (+10.5 V to +15.0 V) |
| Power Consumption |
5.8 W (max.) |
| Operating Temperature |
-10°C to +50°C
14°F to + 122°F |
| Performance Guarantee Temperature |
0°C to 40°C
32°F to 104°F |
| Storage Temperature |
-30°C to +60°C
-22°F to +140°F |
| Operating Humidity |
20% to 80% (no condensation) |
| Storage Humidity |
20% to 95% (no condensation) |
| Shock Resistance |
70 G |
| Dimensions (W X H X D) *1 |
50 x 50 x 57.5 mm (excluding protrusions)
2 x 2 x 2 3/8 inches (excluding protrusions) |
| Mass |
200 g
7.1 oz |
| Regulations |
UL2044, FCC Class A, CE: EN55022, AS/NZ: EN55022, VCCI Class A, KC: KN22/KN24 Class A |
| Supplied Accessories |
Lens mount cap (1)
Connecter plug 2P (1)
Operating instructions (1) |
