Detailed Product Description
| Image Sensor: |
CCD Progressive Scan |
Sensor Size: |
1/1,8" |
| Dimensions (W X H X D): |
44 X 33 X 67.5 Mm |
Lens Mount: |
C Mount |
| Power Consumption: |
3.5W |
Weight: |
70G |

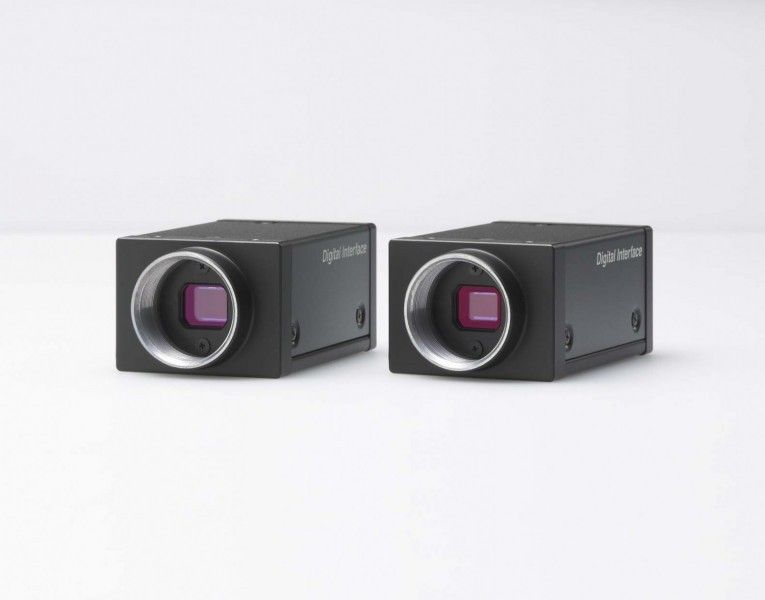

Raw Color GigE Industrial Camera Machine Vision Systems From Sony XCG-U100CR
Advantage:
Sony proudly introduces two new raw color GigE cameras to its popular XCG Series: the high-quality, high-performance XCG-5005CR and XCG-U100CR.
Description:
The new XCG camera uses a CCD with a color mask (commonly called a "Bayer filter") and output the raw color pixel values in 8, 10 or 12 bit to be converted to a color image on a computer. The XCG-U100CR incorporates a 1/1.8-type progressive scan IT CCD with UXGA resolution, at 27 fps. Other features, such as Partial Scan Readout and Bulk/Sequential Trigger modes make these new High Speed GigE cameras ideally suited for Intelligent Traffic and machine vision applications.
Applications:
Featuring Full Progressive Scan, Complementary Color Mosaic Color Filter, and High Sensitivity, the new XCG-U100CR high speed GigE camera is ideal for Intelligent Traffic, Machine Vision, and Industrial applications
Feature:
* Progressive Scan Raw Color CCD
* UXGA and 5 MP versions
* GigE Vision? interface compliant (Ver 1.20)
* Variety of trigger modes
* Power on LED settings
* Sony Image Filter Dedicated Driver
* XML File (GenICam Compliance)
* Bulk Trigger Mode and Sequential Trigger Mode
* High Shock and Vibration Resistance
* Two connectors: RJ-45 (locking – 20mm pitch)
* EIAJ -12 pin (power, trigger-in, strobe-out,
* isolated digital I/O)
* Compact : 44 x 33 x 67.5 mm
Specification:
| Sensor Type |
CCD Progressive Scan |
| Sensor Size |
1/1,8" |
| Resolution |
1600x1200 |
| Frame rate |
27fps |
| Image Sensor |
1/1,8 type progressive scan IT CCD |
| Shutter speed |
Manual (2 to 1/100,000s) |
| Power requirements |
+12 Vdc (+10.5 to +15 Vdc |
| Operating temperature |
-10° C~ +50° |
| Dimensions (W x H x D) |
44 x 33 x 67.5 mm |
| Cell size |
4.4 x 4.4 μm |
| Gain control |
Manual (0 to +18dB) / auto |
| Resolution Depth |
8/10/12 bits /pixel (Raw data or B&W) |
| Readout modes |
Normal / Partial scan |
| Memory channel |
16 channels |
| Digital interface |
1000 BASE-T (GIGe Vision compatible) |
| Standard picture size (H x V) |
1600 x 1200 |
| Lens mount |
C mount |
| Standard frame rate |
27 fps |
| External trigger |
Hardware/Software, Pulse-edge, Pulse-width, Special (Bulk/Sequential) |
| Synchronisation, I/Os |
2 inputs, 2 outputs (trigger delay, Strobe control support) |
| Special features |
One Push White Balance / Manual |
