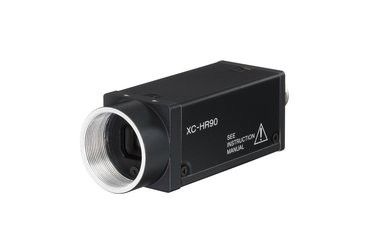

SONY XC-HR90 Camera

The XC-HR90 high speed/ high resolution camera incorporates a 1/3" Progressive Scan IT CCD with SXGA resolution of 1280 x 960 pixels with at a selectable frame rate of up to 15 or 30 full frames per second (fps). The XC-HR90 achieves high rate scanning up to 204.8 fps with 60 effective lines, selectable from 16 vertical divisions. In addition, all camera settings can be made via the camera's RS-232C interface. The XC-HR90 features a small and lightweight body with the same faceplate dimensions as the other models in the XC-HR series, enabling them to be easily interchanged for various applications and ideal for space restricted areas. The compact XC-HR90 camera possesses an unmatched combination of resolution, speed, and control, attributing to the continuous success of Sony as a market leader in the industrial environments of machine vision and beyond.

SONY XC-HR90 Camera Advantage :
*  1/3" B&W type progressive scan CCD
*  SXGA resolution (1,280 x 960 pixels) image capture at a speed of 30 or 15 full fps
*  High-rate scanning
*  Readout of center 240 lines at 95.8 fps (set using dip switches)
*  Readout of 60 effective lines selectable from 16 vertical divisions at up to 204.8 fps
*  Horizontal Resolution: 960 TV Lines
*  Partial scan controlled by VD pulse length
*  Minimum illumination: 1.0lx at F 1.4
*  High S/N ratio: 56 dB
*  Electronic Shutter: 1/100 to 1/100,000 sec

SONY XC-HR90 Camera Features:
*  Compact and light weight: 29(W) x 29(H)x 63.5(D) mm
*  Progressive scan with square pixels
*  High Frame Rate: 30/15[fps] (selectable)
*  High Rate Partial Scanning: Up to 192[fps] (60 lines)
*  Various Mode Setting: Binning, Restart/Reset, Trigger Mode 1 , Trigger Mode 2
*  High S/N ratio: 56 [dB]
*  RS-232C serial communication
*  RoHS compliance
*  High shock and vibration tolerant
