Detailed Product Description
| Image Device: |
Super HAD II 1/3-type IT CCD |
Effective Lines: |
768 X 494 |
| Lens Mount: |
NF Mount |
Minimum Illumination: |
1.5 Lx At F1.4 AGC: Max (18 DB) |
| Size: |
22 X 22 X 75 Mm |
Weight: |
51G |
| Horizontal Resolution: |
470 TV Line |
|
|

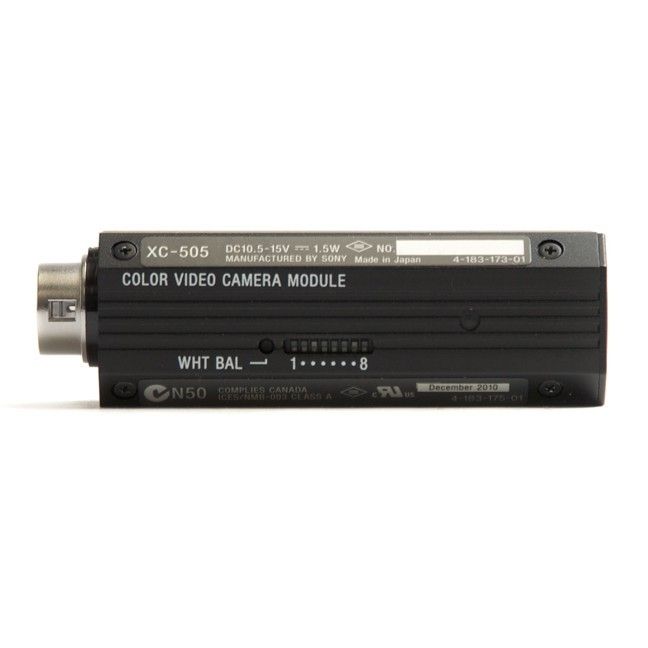

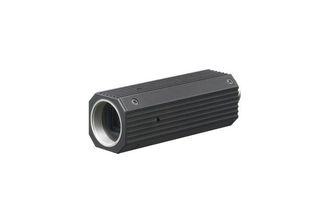

1/3-inch Industrial Camera Systems SONY XC-505 Miniature Borescopes Color CCD
Description:
THE XC-505 IS THE REPLACEMENT FOR THE DISCONTINUED XC-555
The XC-505 and XC-505P are ultra-compact andlightweight color video cameras incorporating a high sensitivity,high-performance 1/3-type Super HAD II CCD.Compared to Sony's popular XC-555 camera, the XC-505and XC-505P are equipped with several new featuresincluding one-push white balance, noise reduction(2D/3D), a built-in color bar, DTL function, and RS-232Csupport.
These cameras use an NF lens system which can easilybe converted into a flexible C-mount lens. What's more,they are easily integrated into space-restrictedenvironments thanks to their one-piece compact androbust body.
Application:
The combination of first-class picture quality with superbsensitivity for less-than-ideal lighting conditions makesthese cameras well-suited for a wide range ofapplications such as remote monitoring, security, contentcreation, machine vision, and sports shooting.
Features:
* Ultra-compact and lightweight color video camera incorporating a high-sensitivity, high-performance 1/3-type Super HAD II CCD.
* Equipped with several new features, including one-push white balance, noise reduction (2D/3D), a built-in color bar, DTL function and RS-232C support.
* Uses an NF lens system which can easily be converted into a flexible C-Mount lens. What's more, it's easily integrated into space-restricted environments thanks to its one-piece compact and robust body.
* Combination of first-class picture quality with superb sensitivity for less-than-ideal lighting conditions makes this camera well-suited for a wide range of applications
Specification:
| Camera Specifications |
Detail: |
| Image Device |
Super HAD II 1/3-type IT CCD |
| Effective Lines |
768 x 494 |
| Lens Mount |
NF Mount |
| Color Filter |
Complementary color mosaic |
| External Sync Signal |
HD/VD, VS, VBS (no genlock) |
| Scanning System |
525 lines, 2:11 interlace, 30 frames/sec |
| Gain |
AGC/Fixed (0 dB) |
| Shutter Speed |
1/60 sec (OFF) (NTSC), 1/1000 sec, CCD IRIS, and FLICKERLESS (selectable) |
| White Balance |
3200K, 5600K, One Push WB, ATW (auto tracking white balance), and MAN (manual), (selectable) |
| Video Output Specifications |
Detail: |
| Horizontal Resolution |
470 TV Lines |
| Minimum Illumination |
1.5 lx at F1.4 AGC: max (18 dB) |
| Output Connector |
DC IN/SYNC/VIDEO: multi 12-pin |
| S/N Ratio |
48 dB (standard) AGC: OFF (0 dB) |
| Sensitivity |
2000 lx at F11 AGC: OFF (0 dB) |
| Video Output |
VBS/YC (selected with the switch)
VBS: 1 Vp-p, 75 ohms, sync negative
Y: 1 Vp-p, 75 ohms
C: C level depends on the composite video out signal |
| General Specifications |
Detail: |
| Dimensions (W x H x D) |
7/8 x 7/8 x 2 61/64 inches (22 x 22 x 75 mm) |
| Weight |
2 oz. (51 g) |
| Power Requirements |
DC 10.5 V to 15 V |
| Power Consumption |
1.5 W |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-22°F to +140°F (-30°C to +60°C) |
| Operating Humidity |
20% to 80% (no condensation permissible) |
| Storage Humidity |
20% to 90% (no condensation permissible) |
| Vibration Resistance |
10 G (20 Hz to 200 Hz) |
| Shock Resistance |
70 G |
